Building autograd engine (tinytorch) 01

Authors

part 1/n

Its weekend, and I am going to build my own autograd engine. I have done this ones before so I shoudnt be problem. started with empty git repo, I will keep commiting without any rebase so in case someone go back they can see eveything.

this is dev blog, I'll try to write explaination to you can recreate it I'm not used to writing tutorials to DM me on @shxf0072 twitter (X now), If I f something up all code will be at github.com/joey00072/tinytorch. I'll leave commits in blog so do git checkout COMMIT_ID to go to that point.

tinytorch

Lets start with Tensor warpper around numpy

import numpy as np


class Tensor:
    def __init__(self,data):
        self.data = data if isinstance(data,np.ndarray) else np.array(data)

    def __add__(self,other):
        return Tensor(self.data + other.data)

    def __mul__(self,other):
        return Tensor(self.data + other.data)

    def __repr__(self):
        return f"tensor({self.data})"


if __name__ == "__main__":
    x = Tensor([8])
    y = Tensor([5])
    z = x+y

    print(z)

yay now we can add two tenors now add adds + to Tensor class if you dont know about this, search about "magic mathod in python"

and my friends called me up for valorant so I'll be back in 2hr or so (20:02 19-08-2023 )

Back (23:02 19-08-2023 )

Add & MUL

don't worry about math code is easy

derivatve of anything with itsed is 1 for f(x) = x fo d/dx = 1

Let's start with addition. If you have the function

f(x)=x+10f(x) = x + 10

its derivative will be 1, since d(x)dx=1\frac{{d(x)}}{{dx}} = 1 the derivative of a constant is 0, and the derivative of 1010 is 00. So 1+0=11 + 0 = 1.

f(x,y)=x+yf(x,y) = x + y

For two variables:

f(x,y)=x+yf(x,y) = x + y

with respect to xx:

d(x)dx=1 and d(y)dx=0 since y is constant, 1+0=1,\frac{{d(x)}}{{dx}} = 1 \text{ and } \frac{{d(y)}}{{dx}} = 0 \text{ since } y \text{ is constant, } 1 + 0 = 1,

with respect to yy:

d(x)dx=0 and d(y)dx=1 since y is constant, 0+1=1.\frac{{d(x)}}{{dx}} = 0 \text{ and } \frac{{d(y)}}{{dx}} = 1 \text{ since } y \text{ is constant, } 0 + 1 = 1.

so if x=10x =10 & y=20y = 20

f(x,y)=x+yf(x,y)dx=1 & f(x,y)dy=1f(x,y) = x+y \\ \\ \frac{{f(x,y)}}{{dx}} = 1 \space \& \space \frac{{f(x,y)}}{{dy}} = 1

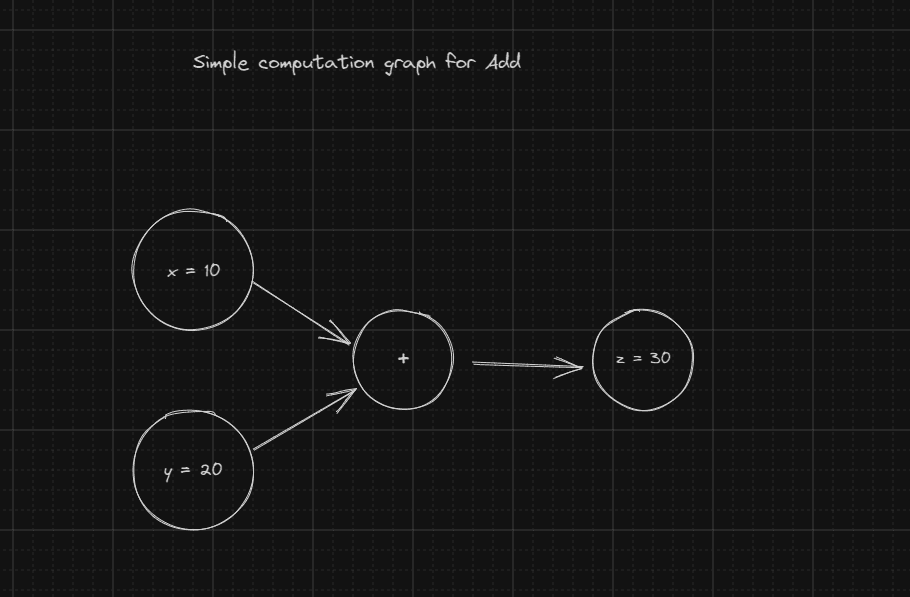

Alt text

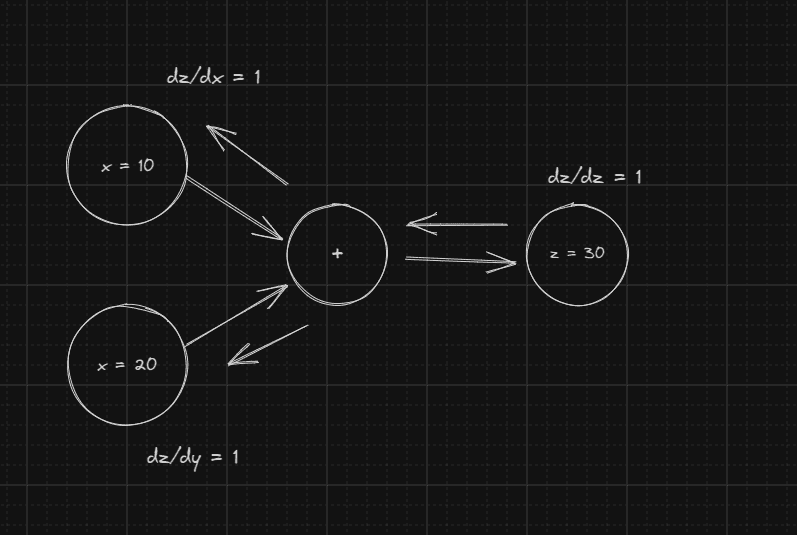

Alt text

noice adding give equial graidnt back to both node since z has grident 1, x and y got both grident 1 this will be usefull in residual connections in transformers

MUL

Now, let's consider multiplication. If you have the function

g(x)=x10,g(x) = x \cdot 10,

its derivative will be 10, since d(x)dx=10\frac{{d(x)}}{{dx}} = 10 and the derivative of 10 is 0. So 101=1010 \cdot 1 = 10.

f(x,y)=xyf(x,y) = x \cdot y

For two variables:

f(x,y)=xyx=10 &y=20f(x,y) = x \cdot y \\ x=10 \space \And y =20

with respect to xx:

d(x)dx=120=20 \frac{{d(x)}}{{dx}} = 1 \cdot 20 = 20\space

with respect to yy:

 d(y)dx=101=10,\space \frac{{d(y)}}{{dx}} = 10 \cdot 1 = 10 ,

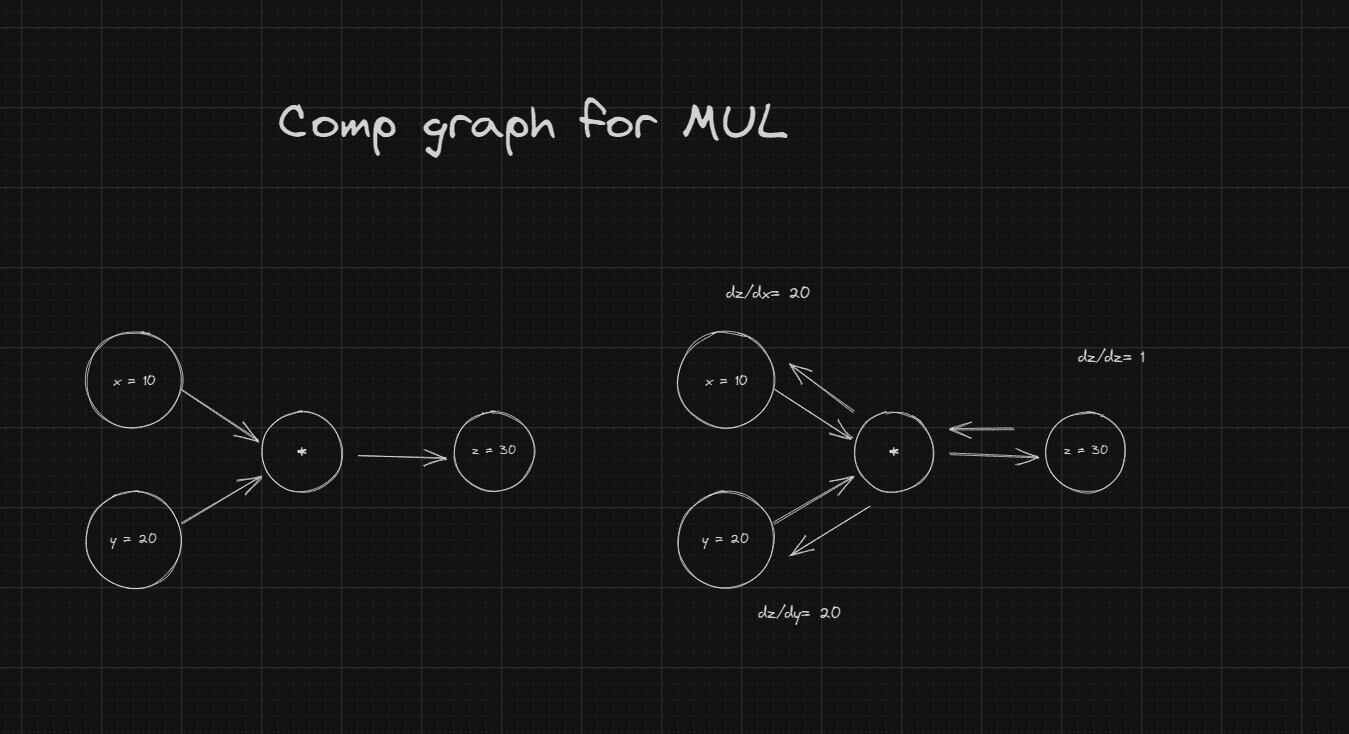

Alt text

Noice in this case derivative or x have value of y (20) and derivate of y have value of x (10)

Lets code

we will create Add MUL and Funtion class move operation login in foward methoed of each class and store value of args in Function.args for backward


class Function:
    def __init__(self,op,*args):
        self.op = op
        self.args = args

class Add:
    @staticmethod
    def forward(x,y):
        return Tensor(x.data + y.data)

    @staticmethod
    def backward(ctx,grad):
        x,y = ctx.args
        return Tensor([1]) ,Tensor([1])

class Mul:
    @staticmethod
    def forward(x,y):
        return Tensor(x.data * y.data) # z = x*y

    @staticmethod
    def backward(ctx,grad):
        x,y = ctx.args
        return  Tensor(y.data), Tensor(x.data) #  dz/dx, dz/dy

Functions class is to store will funtion/operation that we have applied so if we add x=10 and y = 20, funtion will have fn.op = Add abd fn.args = (10,20)

we pass function object as context to backward when we will get original args back when we doing backward pass

Lets modify add and mul


class Tensor:
    def __init__(self,data):
        self.data = data if isinstance(data,np.ndarray) else np.array(data)
        self._ctx = None

    def __add__(self,other):
        fn = Function(Add,self,other)
        result = Add.forward(self,other)
        result._ctx = fn
        return result

    def __mul__(self,other):
        fn = Function(Mul,self,other)
        result = Mul.forward(self,other)
        result._ctx = fn
        return result


    def __repr__(self):
        return f"tensor({self.data})"

So when you do some op

  1. fist store all info related to that op in Function Object
  2. than do the op.forward
  3. store all information in result node
  4. return result

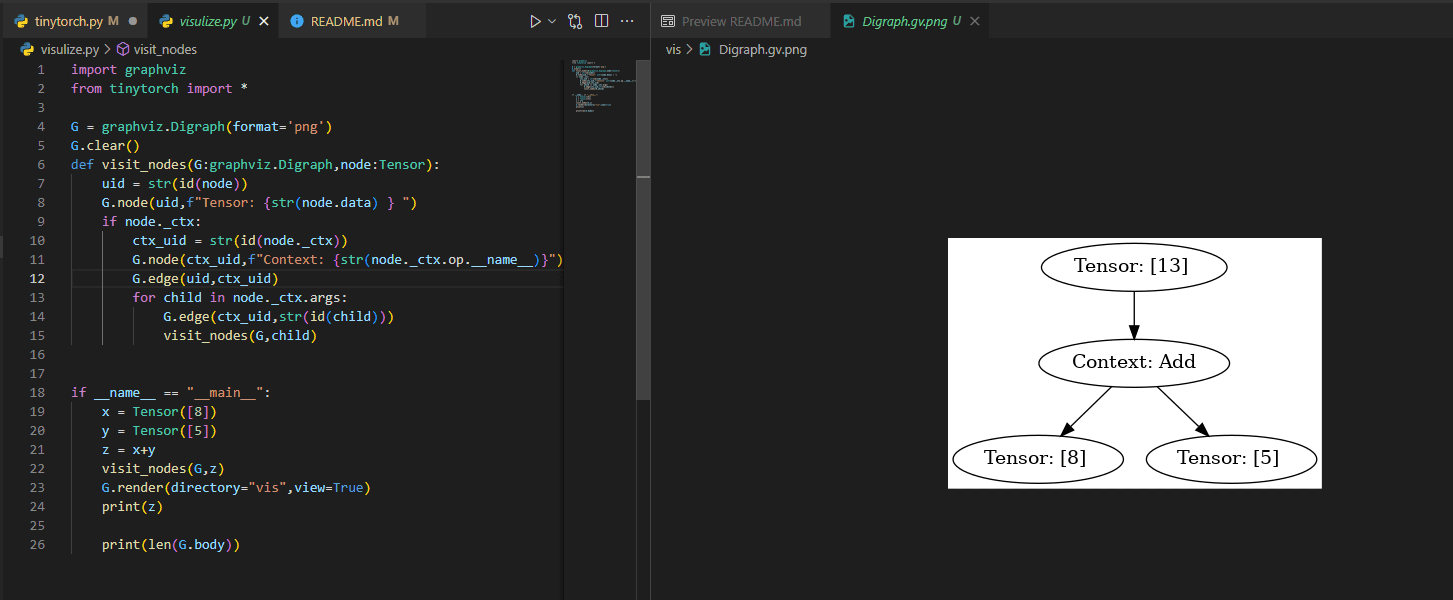

If you want to see this this graph creare new visualize.py file

pip install graphviz
sudo apt-get install -y graphviz # IDK what to do for windows I use wsl
import graphviz
from tinytorch import *

G = graphviz.Digraph(format='png')
G.clear()
def visit_nodes(G:graphviz.Digraph,node:Tensor):
    uid = str(id(node))
    G.node(uid,f"Tensor: {str(node.data) } ")
    if node._ctx:
        ctx_uid = str(id(node._ctx))
        G.node(ctx_uid,f"Context: {str(node._ctx.op.__name__)}")
        G.edge(uid,ctx_uid)
        for child in node._ctx.args:
            G.edge(ctx_uid,str(id(child)))
            visit_nodes(G,child)


if __name__ == "__main__":
    x = Tensor([8])
    y = Tensor([5])
    z = x+y
    visit_nodes(G,z)
    G.render(directory="vis",view=True)
    print(z)

    print(len(G.body))

import numpy as np

class Tensor:
    def __init__(self,data):
        self.data = data if isinstance(data,np.ndarray) else np.array(data)
        self._ctx = None

    def __add__(self,other):
        fn = Function(Add,self,other)
        result = Add.forward(self,other)
        result._ctx = fn
        return result

    def __mul__(self,other):
        fn = Function(Mul,self,other)
        result = Mul.forward(self,other)
        result._ctx = fn
        return result


    def __repr__(self):
        return f"tensor({self.data})"

class Function:
    def __init__(self,op,*args):
        self.op = op
        self.args = args

class Add:
    @staticmethod
    def forward(x,y):
        return Tensor(x.data + y.data)

    @staticmethod
    def backward(ctx,grad):
        x,y = ctx.args
        return Tensor([1]),Tensor([1])

class Mul:
    @staticmethod
    def forward(x,y):
        return Tensor(x.data * y.data) # z = x*y

    @staticmethod
    def backward(ctx,grad):
        x,y = ctx.args
        return  Tensor(y.data), Tensor(x.data) #  dz/dx, dz/dy

if __name__ == "__main__":
    x = Tensor([8])
    y = Tensor([5])
    z = x*y
    print(z)

Alt text

Till commit dc11629 https://github.com/joey00072/tinytorch

sleeping now backprop tomorrow
